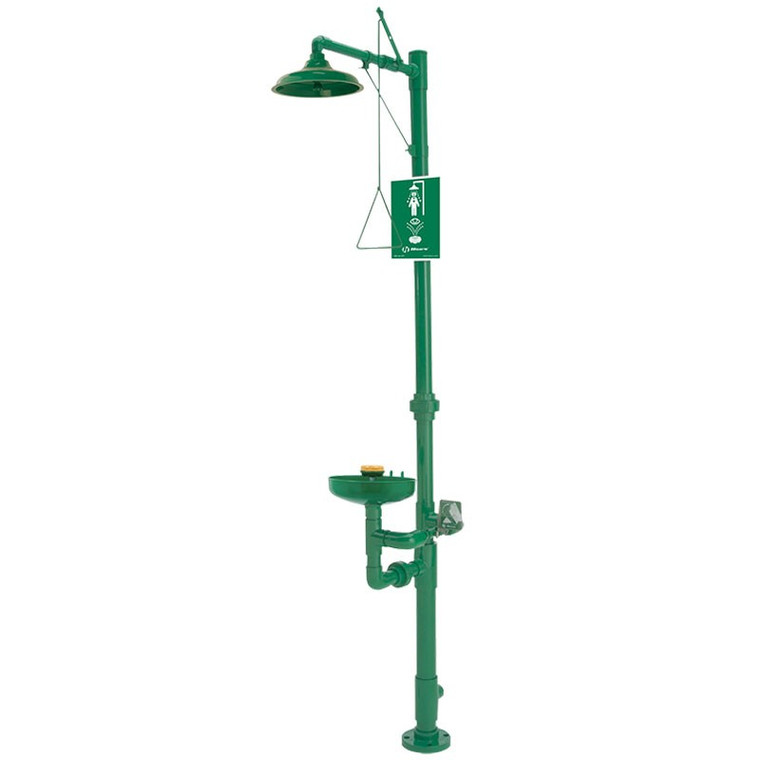

Haws Corrosion Resistant PVC Emergency Shower Eye/Face Wash

Haws 8336 is a Corrosion Resistant PVC Emergency Shower-Emergency Eyewash with green epoxy coating. This emergency shower is equipped with type 316 stainless steel ball valves and schedule 80 PVC pipe and fittings which are resistant to corrosion.

Corrosion Resistant PVC Emergency Shower-Emergency Eye/Face Wash

The Haws 8336 combination shower and eyewash features the medically acclaimed AXION MSR™ eye/face wash head assembly (patent pending). This revolutionary inverted flow design is the only product on the market that provides a Medically Superior Response consistent with all EMT, emergency room and doctors’ office protocols by sweeping contaminants away from the vulnerable nasal cavity. Traditional eyewashes irrigate from the outside edge of the eye back toward the nose, where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, nature’s ocular cavity drain. AXION MSR™ also offers a new hydrodynamic shower design that minimizes the strong physical pressure that drives the water to the outer rim of normal showerheads, making the distribution equal across the entire footprint of the flow. Better use of the water flowing through the shower makes it more effective while providing a more comfortable environment by breaking the streams of water into smaller individual droplets.

•AXION MSR™ eyewash head is antimicrobially treated using the natural protection of silver which helps protect against the growth of mold and mildew on the treated components
•Emergency combination unit is equipped with Type 316 Stainless Steel ball valves and constructed of green epoxy finished, Schedule 80 PVC pipe and fittings which are resistant to corrosion
•A great addition to unsafe environments where the eyes and body may be exposed to corrosive materials
•Requires minimal maintenance and is equipped with test card to record weekly testing
•Reducing installation time, entire unit is pre-built and fully water/pressure tested

CONSTRUCTION
2-1/2" green epoxy finished Schedule 80 PVC pipe stanchion offer an added protection in highly corrosive environments.
VALVES
Type 316 Stainless Steel eyewash and shower ball valves are designed to make the flushing of fluid occur with the simple pull of a lever or push of a stainless steel flag, and come equipped with a stainless steel ball and stem to provide greater protection against corrosion and breakage.
QUALITY CONTROL
Entire unit is pre-built and fully water and pressure tested to ensure no leaks and proper function for reduced installation time and an added peace of mind.
EYE/FACE WASH
AXION MSR™ eye/face wash head (patent pending) uses an inverted directional laminar flow to sweep contaminants away from the vulnerable nasal cavity. SHOWER HEAD
AXION MSR™ ABS plastic drench shower head uses a hydrodynamic design to give equal distribution of water throughout the entire footprint of flow.
ANTIMICROBIALLY TREATED
AXION MSR™ eye/face head is antimicrobially treated using the natural protection of silver. Impregnating these components with silver helps protect the head against the growth of mold and mildew on the treated components.

OPTIONS
Alarm: Model 9001, 120 VAC emergency alarm and light system. Buzzer and flashing light are activated by a double pole, double throw flow switch.
Shower Test Kit: Model 9010 shower test kit includes holding rod, upper corrosion-resistant ring to encircle the shower head, and Tyvek waterproof tunnel shaped tube to guide the water column to container or drain.
Universal Sign: Model 9020 green and yellow ABS plastic 3-sided high visibility sign.
Universal Sign: Model SP178LG large vertical universal combination emergency shower and eyewash sign. Size: 18" x 24".

Certified by CSA to meet the ANSI Z358.1-2009 Standard for Emergency Eyewash and Shower Equipment

Buy America Act Information The vast majority of Haws products qualify under the terms of the act. However, since different purchases often require subtly different responses, Haws recommends that the specific document requesting certification be sent to customer service for a specific answer.

Industry Standards Compliant

Need more info? Please click below to view spec sheet for Haws 8336 corrosion resistant emergency eyewash.

* This shower ships via freight truck. We will contact you with actual freight charges prior to processing your order. Your order will not be processed without your approval of the freight rate.
