Haws 9201H Thermostatic Mixing Valve Lead Free

Haws 9201H Thermostatic Mixing Valve Lead Free

Haws 9201H Lead free Emergency Thermostatic Mixing Valve provide a safe fluid supply for emergency showers and eyewash equipment by mixing hot and cold water to provide a safe water temperature supply for your emergency showers and eyewash equipment.

Haws Emergency Mixing Valve Lead Free Emergency Valve

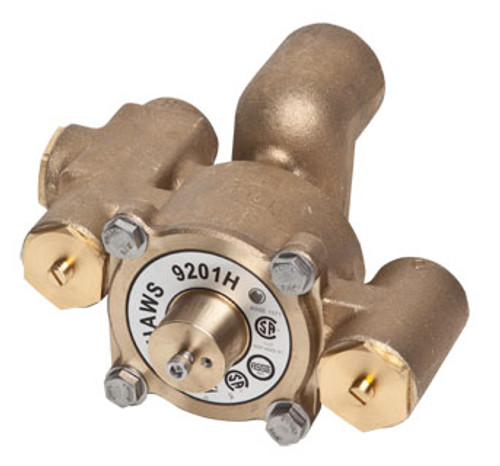

Model 9201H, lead-free Thermostatic Emergency Mixing Valve (patent pending), thermostatically mixes hot and cold water to provide a safe fluid supply for emergency showers and eyewash equipment. The valve contains a secondary high temperature limit valve to provide additional protection to the user in the event of main tempering valve malfunction. Additionally, to ensure a fail-safe water supply for emergency shower and eyewash stations, a series of cold water by-pass valves open in the event of hot water pressure loss. (No gauges supplied - ASSE 1071 standard recommends gauges be placed 5 to 8 feet downstream for the most accurate measurement.)

•A flow rate of 1 to 31 GPM for better temperature control across the operating range
•Lowest internal pressure drop for this class of valve (advantage where supply pressure is low)
•Wax based thermostat technology for fast response time with proven highly reliable temperature control
•Highest Cold Water Bypass flow rate in the industry (65% of rated tepid flow rate)
•Modular low-lead brass design with internal check stops
•Oversized valve seats resist failures caused by foreign matter
•A new and efficient shuttle design eliminates valve sticking
•A custom funnel design improves temperature control at low flow rates
•Outlet temperature is factory set to 85°F (29°C)
•Tempered water: High temperature limit is factory set to 87°F (30°C)
•0.0 GPM cold water failure rate when tested according to ASSE 1071
•Cold water by-pass valves are closed during normal operation, regardless of flow rate

CSA Certified to ASSE 1071, NSF 61, California Health and Safety Code 116875 (AB 1953) and applicable sections of CSA B125.3.

 The vast majority of Haws products qualify under the terms of the act. However, since different purchases often require subtly different responses, Haws recommends that the specific document requesting certification be sent to customer service for a specific answer.
