Emergency Shower/ Eyewash Combo 8300-8309

Haws 8300-8309 Emergency Shower/ Eyewash Model 8300-8309 features the medically acclaimed AXION MSR™ eye wash and eye/face wash head assembly.

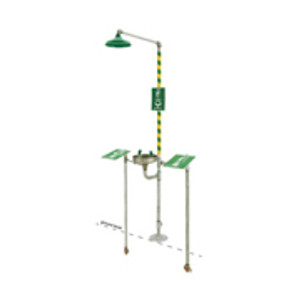

Haws 8300-8309 Emergency Shower- Eyewash Unit
Model 8300-8309 combination shower and eye/face wash shall include a stainless steel 11" (27.9 cm) round bowl, an AXION MSR™ eye/face wash head shall feature inverted directional laminar flow which achieves zero vertical velocity supplied by an integral flow control. Unit shall also include the AXION MSR hydrodynamic designed ABS plastic showerhead with flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Unit shall also include Schedule 40 hot-dipped galvanized steel pipe and fittings, powder-coated cast-iron 9" (22.9 cm) diameter floor flange, self-adhesive high visibility safety green and bright yellow stripes, universal sign, and 1-1/4" IPS supply.

This unit features the medically acclaimed AXION MSR™ eye/face wash head assembly (patent pending). This revolutionary inverted flow design is the only product on the market that provides a Medically Superior Response consistent with all EMT, emergency room and doctors’ office protocols by sweeping contaminants away from the vulnerable nasal cavity. Traditional eyewashes irrigate from the outside edge of the eye back toward the nose, where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, nature’s ocular cavity drain. AXION MSR™ also offers a new hydrodynamic shower design that minimizes the strong physical pressure that drives the water to the outer rim of normal showerheads, making the distribution equal across the entire footprint of the flow. Better use of the water flowing through the shower makes it more effective while providing a more comfortable environment by breaking the streams of water into smaller individual droplets.

* AXION MSR™ eyewash head is impregnated with NSF approved Saniguard® antimicrobial pathogen protection.
* Features a round 11" stainless steel bowl with a head with integral flow control that can be user configured as either an eyewash or eye and face wash on site.

* Eyewash streams provide zero vertical velocity stream engineering with even laminar flow for enhanced comfort, stability and effectiveness.
* AXION MSR™ 10-5/8" ABS plastic drench shower head with integral flow control delivers dispersed flow for uniform drenching.
* Also features a stainless steel push flag for eyewash activation, stainless steel pull rod for shower activation, mesh in-line eyewash strainer to collect line debris and ball valves with stainless steel stem and stainless ball for durability.
* Pipe and fitting: 1-1/4" Schedule 40 hot-dipped galvanized steel. Supply and Waste: 1-1/4" IPS.

Haws Model 8300 is certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment.

Do you need a spec sheet on Haws 8300-8309? If so, please click on the link to view even more information
