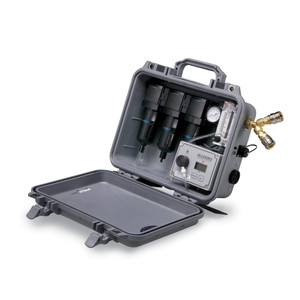

Allegro 9875-40W/O Wall-Air Filtration Panel without CO Monitor (5-Worker)

Allegro's Air Filtration Panels convert shop air used for pneumatic tools and equipment to clean breathable air. They provide from 1 to 8 airline respirators a portable source of up to 15, 30, 60 or 100 CFM of breathable air from 5-125 psig. The 3-stage filtration system purifies compressed air removing water, oil and particulate contaminants. An optional carbon monoxide monitor, which can be operated in AC or DC mode, activates an audible alarm when the concentration of CO exceeds 10 ppm (set for 5 ppm in Canada).

The pressure regulator includes a pressure gauge and adjustment knob with locking ring. An adjustable pressure relief valve protects the CO monitor and respirators in the event of regulator failure. Available with and without CO monitors. All models meet NIOSH requirements for point-of-attachment.

CONSTRUCTION:

• Housed in a portable, rugged case with carrying handle, latches for protection and security
• A 16 gauge powder coated steel stand, for support
• All brass plumbing with quick-disconnect Hansen couplers

CO MONITOR:

• Power source: 115V AC to 9V DC power adapter for continuous power supply 9V DC Alkaline battery (primary or as back-up for AC adapter)
• Alarm Setting: 10 PPM (Canada: 5PPM)
• Ext. Connections: Optional Remote Strobe Alarm
• Audible: 90 decibel Piezo Alarm
• Visual: External power LED light signal
• Sensor: Electrochemical, replaceable
• Display: Liquid crystal
• Keys: Mode & Set
• Modes: Normal Operation, Peak, Battery Charge and Calibration
• Calibration: Self adjusting calibration to 20 PPM CO

FILTRATION SYSTEM:

• First Stage: 5 micron particulate filter element and automatic mechanical drain
• Second Stage: 0.010 micron coalescing filter element and manual drain
• Third Stage: 0.003 ppm activated carbon filter element and manual drain
• Regulator: High pressure, adjusting pressure knob, 0-160 psi (0-11.03 bar) pressure gauge, external relief valve set at 125 psi (8.62 bar)
• Flow Meter: Adjustable metering valve, range from 0.0-1.0 LPM
