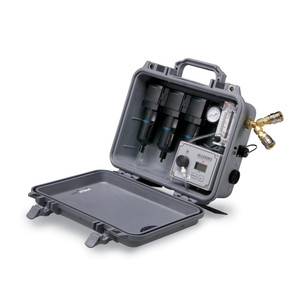

Allegro air filtration panels filter impurities and hydrocarbons from an air compressor to convert to breathable air. To meet OSHA requirements an optional CO monitor is available for continuous monitoring of carbon monoxide levels. Panel provides up to 30 CFM (50.97 m3 /hr) of air within a 5-125 PSI (.34-8.62 bar) range.
CONSTRUCTION:
- Housed in a portable, rugged Pelican case with carrying handle latches for protection and security
- A 16 gauge powder coated steel stand, for support
- All brass plumbing with quick-disconnect Hansen couplers
CO MONITOR:
- Power source: 115V AC to 9V DC power adapter for continuous power supply 9V DC Alkaline battery (primary or as back-up for AC adapter)
- Alarm Setting: 10 PPM (Canada: 5PPM)
- Ext. Connections: Optional Remote Strobe Alarm
- Audible: 90 decibel Piezo Alarm
- Visual: External power LED light signal
- Sensor: Electrochemical, replaceable
- Display: Liquid crystal
- Keys: Mode & Set
- Modes: Normal operation, peak, battery charge and calibration mode
- Calibration: Self adjusting calibration to 20 PPM CO
FILTRATION SYSTEM:
- First Stage: 5 micron particulate filter element and automatic mechanical drain
- Second Stage: 0.010 micron coalescing filter element and manual drain
- Third Stage: 0.003 ppm activated carbon filter element and manual drain
- Regulator: High pressure, adjusting pressure knob, 0-160 (0-11.03 bar) pressure gauge and externa relief valve
- Flow Meter: Adjustable metering valve, range from 0.0-1.0 LPM
