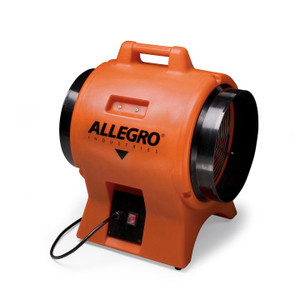

This electric, explosion-proof blower is ideally suited for large confined spaces in statically conductive environments. Its single phase motor includes a NEMA rated 115V plug for use with explosion-proof socket (sold separately). Meets Class I, Divisions 1 and 2, Groups C and D and Class II, Divisions 1 and 2, Groups F and G Hazardous Location Requirements. Certified to CSA Standard C22.2 No.113.
NOTE: Explosion-proof blowers require an explosion-proof socket.
CONSTRUCTION:
- Polyethylene housing, in “safety orange”
- Lightweight, corrosion-, UV- and chemical-resistant
- Super quiet
- Carry handle molded into blower
- Black plastic grill
- 25’ (7.62 m) power cord
- NEMA 5-20 ECP type plug
• NOTE: EX blowers require an explosion-proof socket (PN 9503-03)
WARNING: When using statically conductive ducting, the integrated grounding wire must be properly
grounded to the blower chassis OR linked to any additional grounding wire or duct used (as shown). Refer
to User Manual for detailed instructions.
MOTOR:
- HP: ¾ HP
- Certifications: UL Listed, CSA Certified
- Voltage: 115/208-230V
- RPM: 3450
- Amps: 9.6/4.6-4.8A
FAN:
- Anti-static glass reinforced polyamide (PAGAS), three blade fan with aluminum hub
