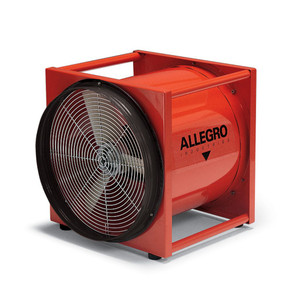

Allegro 9525-01 20" Axial Explosion-Proof (EX) Metal Blower

Allegro 9525-01 has an electric, explosion proof motor is UL/CSA listed single phase motor and NEMA rated. 115V plug and 3 blade fan. Meets Class I, Division 1 and 2, Groups C & D, Class II Division 1 and 2 Groups F & G.

GENERAL DESCRIPTION of ALLEGRO 9525-01:
For use in applications requiring a large amount of output in a hazardous location environment. Allegro’s 20” (50.8cm) Explosion Proof blower is offered with a 1/2 HP Explosion Proof motor with an efficient 3-blade fan in a rugged metal housing. Certified to CSA Standard C22.2 No. 113.

CONSTRUCTION:

• Complete unit epoxy powder coated in orange
• Interchangeable flange for intake or exhaust side mounting
• 16 gauge cold rolled steel housing
• Integrated carrying handles on four sides
• Steel grill (zinc plated)
• Equipped with four rubber feet
• Stackable design

MOTOR:

• HP: 1/2 HP
• Certifications: UL Listed, CSA certified
• Voltage/Hz: 115/230V AC, 60 Hz, Single Phase
• RPM: 1725
• Current Draw: 8.2/4.1A
• Cord: 25’ (7.62m) 12/3 AWG SJOOW 90C 300V medium duty
• Plug: NEMA 20 Amp plug, explosion proof rated.

FAN:

• Anti-Static glass reinforced polyamide three blade fan with aluminum hub
• Moving fan mounted 1 5/8” (4.12cm) from grill for safety, grill gap 5/16” (.79cm)

Dimensions:
19" L x 22" W x 22.5" H Weight 75 pounds

Flow Rate:
Free air CFM 4650
One 90 degree bend CFM 3150
Two 90 degree bends CFM 2950

This Allegro 9525-01 Explosion Proof Axial Blower can be used with a generator, but it is important to use the proper size generator when powering a blower. Using an undersized generator may cause damage to the blower motor. Use of a generator at the minimum recommended output with additional devises can cause decreased output or blower stoppage. Please contact our office for more information.
