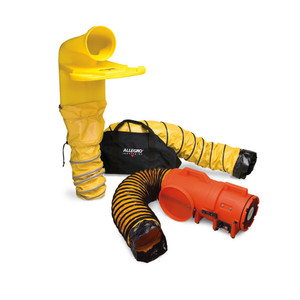

This Allegro 9520-06M DC Axial Blower System has the most asked for equipment you will need for your confined space work site. Allegro 9520-06M is a DC Axial Blower System with MVP and comes complete with Allegro 9506 DC Axial Blower, 2 sections of ducting as well as duct carry bag making it easy to carry your system to your jobsites.
Axial Ventilation System for DC Axial Blower System
Allegro 9506 DC Axial Blower
Allegro Safety introduces easy to order, easy to use Complete Ventilation systems including all the most-asked-for equipment you need for your confined space site.
The systems include a choice of Allegro’s most popular blowers, six feet and fifteen feet of ducting with a storage bag, and a Manhole Ventilation Pass thru (MVP). The Axial Blower Systems offer lightweight portability with the highest output available from axial-style blowers. See individual blower descriptions for CFM, weight and other specifications.
GENERAL DESCRIPTION of ALLEGRO 9506 DC AXIAL BLOWER :
Smart compact design allows for easy use and storage without sacrificing airflow. Powered by a 12V DC battery or power source. Available as blower only or complete unit with 15’ (4.57m) or 25’ (7.62m) of ducting and storage canister.
CONSTRUCTION;
Epoxy powder coated in “safety orange”
Flange on intake side for optional Inlet Adapter
18 gauge cold rolled steel housing
Welded motor mount construction
Steel/chrome plated grill
Carry handle made of 3-ply rubber belting
Equipped with four rubber feet
MOTOR:
HP: 1/3 HP, 12V DC
RPM: 4200
Current Draw: 13A
Fuse: Inline 25A
Cord: 15’ (4.57m) SJOOW, AWG 12/2 90C 300V neoprene
medium duty
Plug: Alligator clips
FAN:
Glass reinforced polypropylene (PPG) six blade fan with aluminum hub
Moving fan mounted 1 5/8” (4.12cm) from grill for safety
Grill gap: 5/16” (.79cm)
DUCTING: (Optional)
Retractable, non-collapsible design
Single-ply, PVC coated, vinyl and polyester materials, temperature resistant up to 180°F (82.2°C)
Yellow color with black weather-strip and integrated nylon straps
Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs
9506 DC Blower Dimensions:
14" L x 13 5/8" W x 15" H
Weight: 18 pounds
Flow Rate:
Free Air: 1150 CFM
One 90 degree bend: 595 CFM
Two 90 degree bends: 530 CFM
