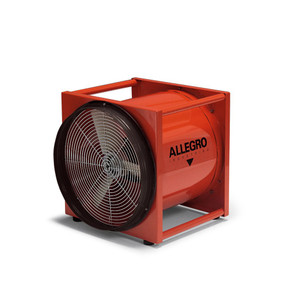

Designed for applications requiring a large amount of output, this standard model blower has a ½ HP motor with an efficient sixblade impeller in a rugged metal housing. Certified to CSA Standard C22.2 No.113.
CONSTRUCTION:
- Complete unit epoxy powder coated in orange
- Interchangeable flange for intake/exhaust side mounting
- 18-gauge cold rolled steel housing
- 10-gauge steel bolted motor base
- Integrated carrying handles on four sides
- Steel/chrome plated grill
- Equipped with four rubber feet
- Stackable design
- Use with Adaptor Reducer (P/N: 9600-50) - to be used with 8” (20.3 cm) ducting
MOTOR:
- HP: 1/2 HP, 220V AC, 50 Hz, Single Phase
- Certifications: UL Listed, CSA Certified
- Max RPM: 1425
- Current Draw: 3.7A
- Cord: 25’ (7.62 m) 12/3 AWG, SJTW 90C 300V medium duty
- Plug: NEMA 5-15 (grounded three-prong)
FAN:
- Glass reinforced polypropylene (PPG) six blade fan, with aluminum hub
- Moving fan mounted 1 5/8” (4.12 cm) from grill for safety
- Grill gap – 5/16” (0.79 cm)
