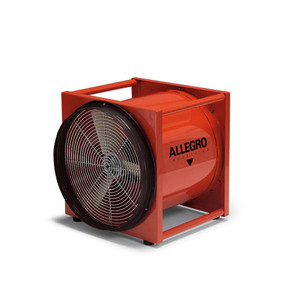

Allegro 9515-01 16" Axial Explosion-Proof (EX) Metal Blower, Single Phase (Includes 115V plug)
AllegroAllegro 9515-01 Explosion Proof Industrial Blower is for locations that require a large amount of output in a hazardous location environment. It features a 1/2 HP explosion proof motor. The flange is interchangeable for intake or exhaust side mounting. We offer great prices on all of Allegro's blowers. We think you'll be pleased with our everyday low prices and especially on this Allegro 9515-01 blower.
16 Inch Explosion-Proof Blower
Same as our 16" Standard Industrial Blower, but includes explosion-proof UL/CSA listed, single phase motor and NEMA rated 115V plug and socket. Meets Class I, Division I, Group D Hazardous Location Requirements. Warning: Explosion-Proof Blowers must be used with statically conductive ducting.
Free Air 3400
One 90° Bend 2800
Two 90° Bends 2300
67 lbs.
1/2 hp
6.3A /115/230V
CONSTRUCTION:
Complete unit epoxy powder coated in orange
Interchangeable flange for intake or exhaust side mounting
18 gauge cold rolled steel housing
Integrated carry handles on four sides, stackable design
Steel grill (zinc plated), equipped with four rubber feet
Can be used with Adaptor Reducer (P/N: 9600-50) used with 8”
(20.3cm) ducting (special grounding instructions must be applied)
MOTOR:
HP: ½ HP
Certifications: UL Listed, CSA Certified
Voltage/Hz: Model 9515-01: 115/230V AC, 50 Hz, Single Phase
Model 9515-01S: 220V AC, 60 Hz, Single Phase
RPM: 1725
Current Draw: 8.2/4.1A
Cord: 25’ (7.63m) 12/3 AWG SJOOW 90C 300V medium duty
Plug: Model 9515-01: NEMA 20 Amp plug, explosion proof rated
Model 9515-01S: No plug included
FAN:
Anti-Static glass reinforced polyamide (PAGAS) six blade fan with aluminum hub
Moving fan mounted 1 5/8” (4.12cm) from grill for safety, grill gap 5/16” (.79cm)
DUCTING: (Accessory)
Black, single-ply, neoprene coated, statically conductive vinyl/polyester material, temperature resistant up to 250°F (121.1°C)
Retractable, non-collapsible design, Class 1 hard drawn spring steel wire helix (meets ASTM 227 specs)
*See below for spec sheet on this 9515-01 Allegro Explosion Proof Industrial Blower
