Allegro 9514-25 8" Axial AC Metal Blower w/ Canister & 25' Ducting

$770.27
(No reviews yet) Write a Review
SKU:
9514-25
UPC:
741851951423
Availability:
Usually Ships in 1-3 Business Days

This Allegro 9514-25 AC Axial blower was engineered for convenience, this 8" axial blower is an all in one industrial ventilation system. The design of Allegro 9514-25 allows for the ducting to collapse into a built in canister perfect for storage. Be sure to compare our low prices!

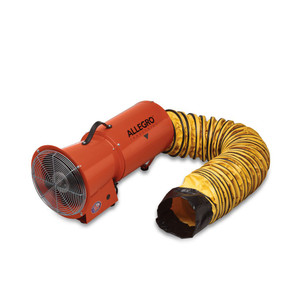

Allegro 9514-25 AC Axial Blower with canister and 25 foot ducting

The design of this AC Axial Industrial Blower allows ducting to collapse into a built in canister for easy storage. The unit can also be stored vertically to use a minimum amount of space. Includes blower, built-in storage canister and 25 ft. of ducting. Certified to CSA STD C22.2 No 113 Air delivery certified CEESI.

weight 46 lbs. 1/3 hp

free air 1275
one 90 degree bend 661
two 90 degree bend 582

CONSTRUCTION:
 Epoxy powder coated in “safety orange”
 Flange on intake side for optional inlet adapter
 18 gauge cold rolled steel housing
 14 gauge steel enclosed panel to protect electrical components
 Welded motor mount construction
 Steel/chrome plated grill
 Handle made of 3-ply rubber belting and equipped with 4 feet

MOTOR:
HP 1/3 HP
Certifications: UL Recognized, CSA Certified
Voltage/Hz: 120V AC, 60Hz Single Phase
RPM: 3200
Current Draw: 3.0A
Cord: 6’ (1.82m) AWG 16/3 SJTW 105C 300V neoprene medium duty
Switch/Plug: Inline ON/OFF, integrated on cord, NEMA 5-15P 125V

FAN:
 Glass reinforced polypropylene (PPG) six blade fan with aluminum hub
 Moving fan mounted 1 5/8” (4.12cm) from grill for safety, 5/16” (.79cm) grill gap

DUCTING:
 Retractable, non-collapsible design
 Single-ply, PVC coated, vinyl and polyester materials, temp. resistant up to 180°F (82.2°C)
 Yellow color with black weatherstrip and integrated nylon straps
 Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs

Dimensions:

36" x L x 13 5/8" W x 15" H
