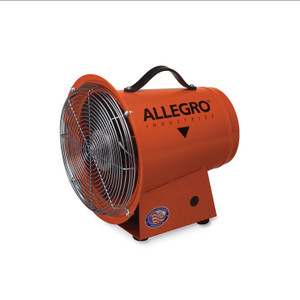

Allegro 9513 8" Axial AC Metal Blower

Are you looking for high output from a compact axial blower? If your answer is yes then Allegro 9513 Axial Blower is the one for you. It offers easy use and storage without sacrificing airflow.

AC Axial Blower 8"
Allegro 9513

With the highest output available from an 8” axial blower, this compact unit offers light weight and high output from an AC electric motor. It is designed with tough steel construction, a durable grill, convenient carrying handle and rubber feet. Its small profile means easy storage. Certified to CSA STD C22.2 No 113. Air delivery certified CEESI.

Free Air: 1275
One 90 degree bend 661
Two 90 degree bends 582

1/3 hp
Weight 19 pounds

High output from a compact axial blower, designed for easy use and storage without sacrificing airflow. Allegro’s Axial Blower is certified to CSA STD C22.2 No 113. Air delivery is certified CEESI. Available as blower only or complete unit with 15’ (4.57m) or 25’ (7.62) of ducting and storage canister.

CONSTRUCTION:
 Epoxy powder coated in “safety orange”
 Flange on intake side for optional inlet adapter
 18 gauge cold rolled steel housing
 14 gauge steel enclosed panel to protect electrical components
 Welded motor mount construction
 Steel/chrome plated grill
 Handle made of 3-ply rubber belting and equipped with 4 feet

MOTOR:
HP 1/3 HP
Certifications: UL Recognized, CSA Certified
Voltage/Hz: 120V AC, 60Hz Single Phase

RPM: 3200
Current Draw: 3.0A
Cord: 6’ (1.82m) AWG 16/3 SJTW 105C 300V neoprene medium duty
Switch/Plug: Inline ON/OFF, integrated on cord, NEMA 5-15P 125V

FAN:
 Glass reinforced polypropylene (PPG) six blade fan with aluminum hub
 Moving fan mounted 1 5/8” (4.12cm) from grill for safety, 5/16” (.79cm) grill gap

DUCTING:
 Retractable, non-collapsible design
 Single-ply, PVC coated, vinyl and polyester materials, temp. resistant up to 180°F (82.2°C)
 Yellow color with black weather-strip and integrated nylon straps
 Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs

Blower Dimensions:
14" L x 13 5/8" W x 15" H
