Allegro 9509-01E 12" Axial Explosion-Proof (EX) Metal Blower, 220V/50 Hz

Allegro 9509-01E 12" Axial Explosion-Proof (EX) Metal Blower, 220V/50 Hz

Allegro
SKU:
9509-01E
|
UPC:
721577288515
Availability:
Usually Ships in 1-2 Business Days
$1,603.21
(No reviews yet)
Width:
21.00 (in)
Height:
21.00 (in)
Depth:
21.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

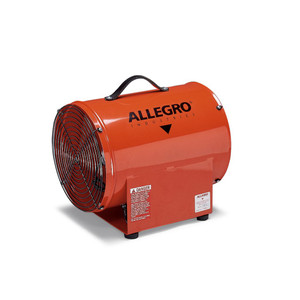

The Allegro 12" (30.4 cm) explosion-proof blower is designed for applications requiring larger amounts of air output. It offers portability and minimal weight and includes a 1/3 HP explosion-proof motor with an efficient three-blade impeller in a rugged metal housing.

CONSTRUCTION:

  • Complete unit epoxy powder coated in orange
  • Attached duct at either flange for intake or exhaust ventilation
  • 16-gauge cold rolled steel housing
  • 14-gauge steel base
  • 3-ply rubber carrying handle
  • Steel black powder coated grill
  • Equipped with four rubber feet
  • NOTE: EX blowers require an explosion-proof socket (9503-06)

MOTOR:

  • HP: 1/3 HP
  • Voltage/Hz: 220V AC, 50 Hz, Single Phase
  • Maximum RPM: 2750 (loaded at 220V, 50Hz)
  • Current Draw: 1.2 A (loaded at 220V, 50Hz)
  • Cord: 25' (7.62m) 18/3 AWG, SJ00W 90C 300V Neoprene medium duty

FAN:

  • Anti-Static glass reinforced Polyimide (PAGAS) three blade fan, with aluminum hub
