This Allegro 9404-02 dewatering pump offers easy dis-assembly with one 12mm box/socket wrench. The standard dewatering pump features a 2/3 HP motor. Be sure to view our other confined space products and compare prices- we think you'll be pleased with our low prices.

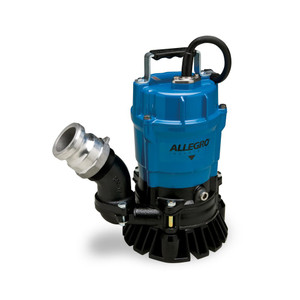

Dewatering Pump Standard
Allegro 9404-02
This standard dewatering pump by Allegro Safety offers easy dis-assembly with one 12mm box/socket wrench.
Allegro 9404-02 features a 2/3 hp motor.
Portable, Submergible Dewatering Pumps are excellent for manholes, vaults, construction sites and all dewatering needs. They offer top discharging which allows continuous operation at low water levels and extended dry-runs without overheating. Includes synthetic rubber wear parts and vortex impeller for durability. All pumps and hoses feature fire hose-style quick connect fittings, and a V-ring system to protect the shaft seal from abrasives.
Dewatering Pump Specifications:
Discharge Bore Inch 2
Motor Output HP 2/3
Phase Single
Total Head (Max) Ft 39 1/2
Capacity (Max)Gal/Min 63 1/2
Rated Current amps 5.4
Starting Method Capacitor
Weight: 21 pounds
Length of Cable Ft 32
Dimensions Diameter 7 3/8"
Height 12"
C.W.L. Inch 2"
*Total Head- Maximum depth pump may be submerged.
*C.W.L.- Continuous running water level
Max. cable length (including standard 32 ft.)
Low Water:
110V-97ft., 3c x 16 AWG
