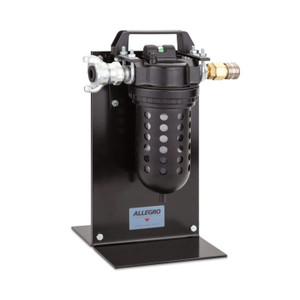

Allegro 9350-03 Air Source Pre Filter
Where air quality is especially low, this free standing or wall mounted particulate assembly helps extend the life of the filter panel's disposable filters by removing liquids and contaminates down to 5 microns. It is equipped with an adjustable regulator pressure gauge and meets the NIOSH requirement for point-of-attachment.
CONSTRUCTION:
- Stand: Powder coated steel
- Relief valve: Brass, spring loaded (External)
- Max Temperature: 150° F (65.5°C)
- Maximum pressure: 250 psi (17.2 bar)
- Flow Capacity: 165 CFM (280.33 m3/hr)
- Fittings: ½” (1.27 cm) Quick-Connect Hansen
REGULATOR & MANIFOLD:
- Manifold: Zinc
- Adjusting knob: Acetal
- Body Cap: ABS
- Valve: Balanced Valve Design, Brass/Nitrile
- Diaphragm: Spring loaded, Nitrile/Zinc
- Pressure gauge: Analog, 0-300 psi (0-20.69 bar), 1½”
- (3.8 cm) diameter
FILTRATION BOWL:
- Bowl: Zinc, with a Polycarbonate sight gauge
- Element retainer: Acetal
- Useful Retention: 2.87 oz (81.36 g)
- Seal: Nitrile
FILTER ELEMENT:
- Standard Filtration: 5 Micron
- Element Type: Coalescing
- Material: Sintered Polyethylene
- Drain: Automatic mechanical with float
Dimensions: 9" D X 6.25" W x 13 15/16" H
Weight: 3.5 pounds
