Allegro 9247-02 Two-Worker Supplied Air Shield System

Allegro 9247-02 offers you the ultimate personal protective equipment (PPE) for environments that demand respiratory protection. This Supplied Air Shield System provides you the all in one head, eye, face and respiratory protection against airborne contaminants and flying debris. Perfect for use with grinding, chipping, spray painting and auto body repair. It’s durable and easy to use.

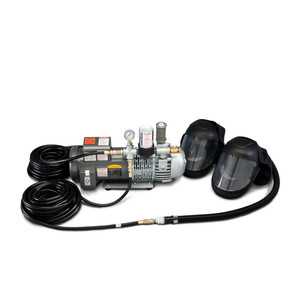

Allegro 9247-02 Two Worker Supplied Air Shield System Comes with (2) 50' Hoses, (2) 9904 Supplied Air Shield, and 1 A-1500 Breathing Air Pump

Helmet: The ultimate Personal Protective Equipment (PPE) solution for industrial manufacturing environments that demand respiratory protection. Our Deluxe Supplied Air Shield/Helmet uniquely provides all-in-one head, eye, face and respiratory protection against hazardous airborne contaminates and flying debris. Ergonomically designed with superb balance, no fit testing required and can be worn by personnel with beards and facial hair. Complies with ANSI Z89.1 Type 1 Class G for head protection; ANSI Z87.1+ for face-shield/eye protection. NIOSH approved

System: Allegro’s Deluxe Supplied Air Shield uniquely provides all-in-one head, eye, face and respiratory protection against hazardous airborne contaminates and flying debris. It delivers a constant and plentiful supply of clean purified air. Allegro’s superbly balanced Deluxe Supplied Air Shield System is offered as a complete system for one or two workers. They include one or two shields, 3/4 hp or 1 1/2 hp ambient air pump and 50 feet of breathing hose. Complies with ANSI Z89.1 Type 1 Class G for head protection; ANSI Z87.1+ for face-shield/eye protection. NIOSH approved

PROTECTION FACTOR: A Certified 3rd Party Testing Lab was contracted to conduct a Simulated Work Place Protection Factor Study on the 9904 Series Respirator. The results of this study indicated that 9904 samples tested yielded 5th percentile protection factors greater than 1,000 thus allowing Allegro to claim that the 9904 Series Respirator qualifies for an APF of 1000 as permitted by OSHA*. *Per OSHA Assigned Protection Factor, Federal Register Notice 71:50121-50192, Dated 8/24/2006. Supporting test data is available upon request from Allegro Industries.

AIR SHIELD/HELMET:

• NIOSH approved
• Head protection: ANSI Z89.1 Type 1 Class G
• Made of ABS • Low profile and lightweight (3.140 lbs)
• Quick release suspension for easy cleaning
• Made in USA

LENS (SHIELD):

• Eye Protection: ANSI Z87.1-2003
• Protection Factor: APF 1000
• Made of anti-fog polycarbonate
• Viewing area: 15” X 6.75”

NECK CAPE:

• Made of Stedprene (a fire retardant, polyurethane coated poly cotton fabric)
• Added comfort
• Protects user’s neck from falling debris

DOWNTUBE & FLOW CONTROLLERS:

• Corrugated flexible and lightweight glass-filled nylon for greater comfort and less fatigue
• Easily interchangeable to Low Pressure or High Pressure. Four options available: Low Pressure Flow Adapter (P/N 9910-11) (10-43 psi), High Pressure Flow Control Valve (P/N 9992) (25-46 psi), Personal Cooler (P/N 9991) (72-98 psi), Air Temperature Controller (P/N 9990) (90-120 psi)
• Made of PU-FR (Flame Retardant Polyurethane) with an ABS Helix. UL94 listed.
• Low profile nylon adjustable waist belt

Pump Specifications:

GENERAL DESCRIPTION: Portable & lightweight air source for one hood user, or up to two full or half face respirator users. Solid performance in applications such as painting, cleaning, sanding or chemical handling operations.

CONSTRUCTION:

• Rigid metal base and housing
• Brass and galvanized steel plumbing
• Quick-connect OBAC fitting
• Adjustable brass pressure relief valve
• Steel handle
• Powder coated blue

PUMP:

*Warning: Breathing Air Pumps are not to be used with generators

**Warning: Air inlet to the pump must be located where breathable air can be assured at all times

• Type: Oil-less, rotary vane, direct driven
• Vanes: Carbon construction (4 ea./replaceable) (3.5” (8.89 cm) X 1.3” (3.40 cm) X 0.188” (0.47 cm))
• Inlet Filter: 50 micron felt material
• Exhaust Filter: 0.3 Micron HEPA
• Working Pressure: 2-12 psi (0.14-0.83 bar) (15 psi max (1.03 bar))
• Performance: 0-20 CFM (0-33.9 m3/hr) (adjusted via pressure relief valve)
• Airline length: 100 Feet (30.4 m) maximum, from pump to respirator (sold separately)
• Noise level: At Pump: 95 dB At 6 feet (1.82 m): 85 dB At 10 feet (3.04 m): 78 dB
• Temperature Range: 32° F - 104° F (0° C - 40° C)

MOTOR:

• HP: 1½ HP, TEFC continuous duty
• Certifications: UL Recognized, CSA Certified
• Volts: 115V/230V AC Single Phase, 60 Hz
• Current Draw: 12.4A @115V (6.2A @ 230V)
• RPM: 1725
• NEMA Nom Eff: 80
• Cord: 8’ (2.43 m) 14/3 AWG SJTW-A 300V Neoprene medium duty
• Switch: Toggle, external ON/OFF
• Plug: NEMA 5-15P (L6-20P in 230V configuration) 3 prong
