Allegro 9220-02 Two-Worker Supplied Air Respirator Tyvek Hood System, 50' Hose

$2,840.34
(No reviews yet) Write a Review
SKU:
9220-02
UPC:
721577286467
Availability:
Usually Ships in 3-5 Business Days

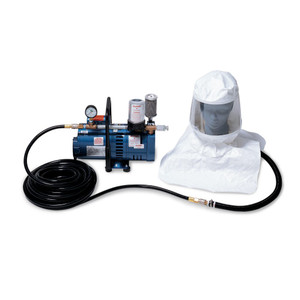

Allegro 9220-02 Supplied Air Respirator System provides an air source for workers in areas where levels of contamination are low. The Respirator Hoods are disposable and lightweight.

In areas such as painting or asbestos abatement, where levels of contamination are low, this complete SAR systems offer a portable air source for two workers.

They include disposable, lightweight, loose fitting DuPont Tyvek™ hoods, a 1 1/2 HP ambient air pump and 50 feet of breathing air hose for each hood.


PUMP:

  • Type: Oil-less, rotary vane
  • Vanes: Carbon construction
  • Inlet Filter: 50 Micron felt material with metal grid inlet filter housing
  • Exhaust Filter: 0.3 Micron HEPA
  • Pressure Gauge: 1½” (3.8 cm) face, steel housing (0-15 psi) (0-1.03 bar)
  • Working Pressure: 2-12 psi (0.14-0.83 bar) (15 psi max)
  • (1.03 bar max)
  • Performance: 0-10 CFM (0-16.99 m3/hr) (3/4 HP) 0-20 CFM (0-33.98 m3/hr) (1½ HP)


MOTOR:

  • Type: ¾ HP, or 1½ HP UL Listed
  • Volts: 115V/230V AC Single Phase
  • Power Required: 8.3 A (3/4 HP), 16 A (1½ HP)

HOOD:

  • Poly-coated DuPont Tyvek®
  • Splash resistant hood and bib
  • Seams surged to seal in the air flow.
  • Generous size is ideal for workers with beards or goggles

LENS:

  • Clear 15mil co-polyester (PETG)
  • Panoramic view, 6”x12” (15.2cm x 30.4cm)
  • Distortion-free

LENS PEEL OFFS: (P/N: 9910-25) (optional)

  • Polyester, clear film with adhesive backing
  • 5.25” X 11.25” (13.3cm x 28.57cm) (0.007” (.017cm) thick)


SUSPENSION:

  • Disposable one-piece assembly
  • Absorbent foam headband
  • Adjustable hook and loop closure head harness secures hood in place


DOWN TUBE:

  • Located in the back of the hood allows it to be out of the way
  • Corrugated flexible and lightweight material for greater comfort and less fatigue
  • OBAC quick-connect plug with wide diameter and minimal air restriction


BELT ASSEMBLY:

  • Low profile nylon adjustable waist belt
  • Plastic clip to restrain airline hose from pulling on the face piece



*This Supplied Air Respirator System is also available with 100 ft. breathing air hose. See part # Allegro 9230-02

Other Supplied Air Hood Systems That Are Also Available:
Part No. 9220-01 One Worker Tyvek Hood System with 50' hose
Part No. 9230-01 One Worker Tyvek Hood System with 100' hose
Part No. 9220-02 Two Worker Tyvek Hood System with 50' hose
Part No. 9230-02 Two Worker Tyvek Hood System with 100' hose
